Teaching ECG rhythm interpretation gets unstuck with four questions, not more theory
In this article
Where classes stall
The gap is not theory, and there is evidence for that
Teaching ECG rhythm interpretation stalls in the same place in almost every program, and it is not the part instructors usually add more lecture to. In a cross-sectional study of 105 registered nurses published in Nursing in Critical Care, all of them already enrolled in a two-year critical care master’s program, the group answered only 55% of a 20-item rhythm test correctly. These were not beginners. They had chosen the specialty and were paying for the degree.
Coronary care nurses scored highest, 12 out of 20 (p < .001), so exposure to the rhythms does something. But length of time as a registered nurse correlated negatively with the score (r = -0.304, p = .002), and so did time in the current unit (r = -0.328, p = .001). Years on the job do not teach strip reading; structured exposure to strips does.
In a randomized comparison of 109 nursing students in BMC Medical Education, the group that learned ECG through a case-based format outscored the lecture group overall (76.45 vs 72.67, P < 0.01) and by far on the applied portion, the part where you actually interpret a strip (45.76 vs 40.67). Their theoretical knowledge score showed no significant difference at all (p > 0.05).
That is the finding to build a course around. More theory changes the theory score. It does not change whether a student can read the strip in front of them.
The four questions
One strip, four questions, always in the same order
The fastest way to get a stuck class moving is to stop asking “what rhythm is this?” and hand them a decision path instead. The CRISP algorithm, tested in a randomized study of 120 trainee nurses, is four questions asked in a fixed sequence:
- Are QRS complexes present?
- Are P waves present?
- If P waves are present: are there more P waves than QRS complexes? If no P waves are present, ask instead whether the QRS complexes are wide or narrow.
- What is the appropriate treatment?
Walk the first strip out loud with it: QRS complexes present, so the ventricles are firing; P waves present, so the atria are too. More P waves than QRS? Then something is blocking conduction and you are in the block family, and the next check is what the PR interval does. If the counts match, the questions become rate and regularity.
Students stop guessing from shape recognition, which is what produces confident wrong answers, and start arriving at the rhythm through a path they can defend. Question 4 is deliberately last, because treatment is where a class wants to jump first.
What each answer lands on
01P waves present, one per QRS, but the PR is longFirst-degree AV block: the conduction is slow, not interrupted.
The PR interval is greater than 0.20 seconds and stays consistent across the strip. Everything else measures normal, which is why it is easy to read past it.
02P waves present, and one beat goes missingSecond-degree AV block, in two versions that the PR interval tells apart.
In type I the PR gets more prolonged with each beat until a beat is dropped. In type II the PR stays consistent, normal or long, and then the QRS simply does not arrive.
03No clear P waves, irregularly irregularAtrial fibrillation: the baseline is wavy rather than flat.
The atria are quivering, so there are no clear P waves and the PR interval cannot be measured at all. This is the rhythm students name correctly most often, which makes it a poor test of whether the path has been learned.
04No clear P waves, sawtooth baselineAtrial flutter: the atrial beats appear as sawtooth waves.
The atrial rate runs at 250 to 300, the PR is not measurable, and the QRS may be regular or irregular depending on how many flutter waves conduct.
05No P waves, wide QRS, fastVentricular tachycardia: the wide QRS complexes are the only thing measurable.
P and T waves are not visible, and the rate runs above 120. There is nothing else on the strip to work with, which is itself the finding.
06Nothing measurable at allVentricular fibrillation or asystole: the strip has stopped being the task.
In fibrillation there is a fibrillatory line and no measurable component. In asystole the line is flat, because no impulse is occurring. Neither is a reading exercise.
One caveat worth stating the same day you introduce it: this path sorts rhythms. It does not cover ischemia or the electrolyte effects the Hong Kong nurses missed most often, hypokalemia and hypomagnesemia (p = .748). Those need their own sessions.
The full read
What a systematic read checks, and the numbers to check it against
Once the four questions have sorted the rhythm, the full read is a checklist, and it is published. Open RN’s Nursing Advanced Skills, hosted by the NIH, lays out the method and the reference ranges. This is the table worth printing and taping inside the cover of the lab binder.
| What you check | How you check it | Normal range |
|---|---|---|
| Rate | Count the R waves in a 6-second strip (30 large boxes) and multiply by 10. The same method with P waves gives the atrial rate | Compare atrial and ventricular rates against each other |
| Rhythm regularity | Measure R to R distances across the whole strip | Regular means R to R distances are always equal |
| P waves | Present, uniform, regular P to P, one per QRS | Consistent shape and spacing |
| PR interval | Start of P to start of QRS | 0.12 to 0.2 seconds (3 to 5 small boxes) |
| QRS duration | Start to end of the complex | 0.04 to 0.12 seconds (1 to 3 small boxes) |
| T wave | Shape and height against the R wave | Between one eighth and two thirds of the R wave, under 10 mm |
| ST segment | Position against the PR interval baseline | Isoelectric |
| QT interval | Start of QRS to end of T | Less than 0.4 to 0.44 seconds |

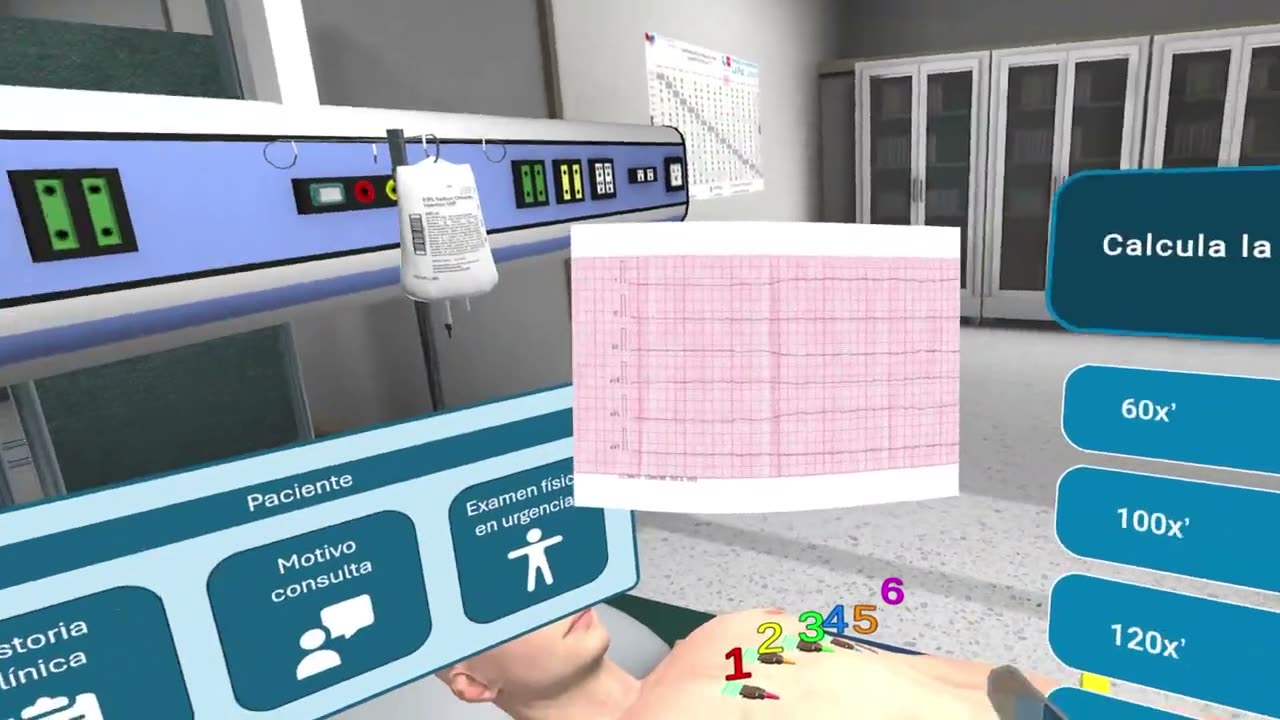

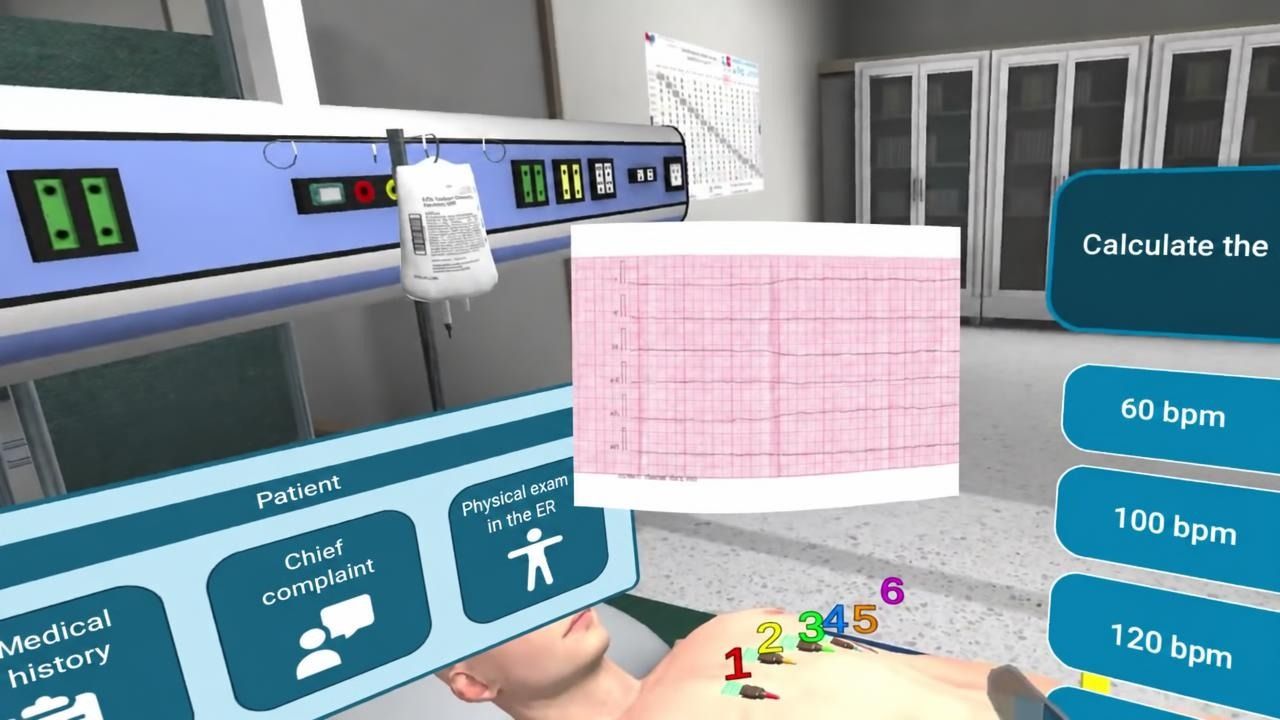

The rate step carries more weight than it looks: counting R waves in six seconds is the one measurement students will do at the bedside without a caliper, in front of a patient, while someone waits for an answer.
How the hour runs
Strips before class, defense during it
The CRISP study did not only test an algorithm, it tested a schedule. Students received reading and video two weeks ahead, then 38 ECGs to interpret on their own using the four questions. Class itself was about 30 minutes of students defending their interpretations and 15 of the instructor synthesizing. Four 45-minute sessions across two weeks, and that was the whole intervention.
Both groups started level (60.43 vs 59.00). One week after training the flipped group scored 80.83 against 73.50, and 24 weeks later, with no additional teaching in between, still 72.67 against 65.00 (p < 0.001). The control group’s score six months out was below where the flipped group started the course.
What makes the schedule work is logistics: the strips go out early enough that students arrive having already been wrong in private, class time is spent on disagreement, which is where the reasoning becomes visible, and the instructor speaks last, which is the hardest of the three to hold to when a room is getting an answer wrong.
The bottleneck is the 38 strips. A cohort that interprets three strips a week and gets feedback on them in class is doing something categorically different from one that watches an instructor interpret 38.
Where the strips come from
The strips have to come from somewhere
Every program that tries this hits the same wall: producing, distributing and grading enough strips per student, per week. Printed packets work until you want them scored, and a lab with one monitor and twenty students gives most of the class a view of somebody else’s hands.
It replaces none of the four sessions above. It is where the repetitions between them come from.
What this does not settle
What a strip cannot teach
Both randomized studies share a first author and a journal, and both ran in China with samples in the low hundreds. Read them as a strong, consistent signal about ordering and pacing, not as a settled effect size.
The four questions sort rhythms and stop there. Ischemia, axis and electrolyte effects need their own approach, and the Hong Kong study suggests electrolytes are where even specialized nurses are weakest.
And none of this touches what a strip cannot teach: what you do with the patient attached to it. A student who can name a rhythm in four questions and cannot say the next sentence to the person in the bed has learned half the skill. That other half is a conversation, and therapeutic communication in nursing covers what to say when it gets hard, and where to rehearse it.
Frequently asked
Questions people ask about this.
-
What is the fastest way to teach ECG rhythm interpretation to a large class?
Give the class a fixed decision path rather than more lecture. The CRISP algorithm asks four questions in order (are QRS complexes present, are P waves present, are there more P waves than QRS complexes or is the QRS wide or narrow, and what is the appropriate treatment). In a randomized study of 120 trainee nurses it produced higher scores one week after training and still higher scores 24 weeks later.
-
Why do experienced nurses still struggle with rhythm strips?
Because time on the job is not the variable that matters. In a study of 105 nurses enrolled in a critical care master’s program, overall accuracy was 55%, and length of time as a registered nurse correlated negatively with the score. What correlated positively was a critical care background, which is to say structured, repeated exposure to strips.
-
What are the normal ECG intervals students should memorize first?
PR interval 0.12 to 0.2 seconds, QRS duration 0.04 to 0.12 seconds, and QT interval under 0.4 to 0.44 seconds. For rate, count the R waves in a six-second strip and multiply by 10. These come from Open RN’s Nursing Advanced Skills, hosted by the NIH.
-
Does flipping the classroom actually work for ECG teaching?
In the studies available, yes, for the applied part. Students who interpreted strips before class and defended their readings during it scored higher on interpretation, both immediately and six months later. Their theoretical knowledge scores were no different from the lecture group, which is the point: the format changes what students can do, not what they can recite.
